NXQM(20L-100L) laboratory ball mill

Brief Introduction of Laboratory ball mill:

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. Tencan planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time). It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

Working Principle of Laboratory ball mill:

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1um.

Features of Laboratory ball mill:

1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.

2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.

3. Four powder samples from different sizes and different materials can be produced at one time.

4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.

5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.

6. Technical features of Tencan Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.

7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

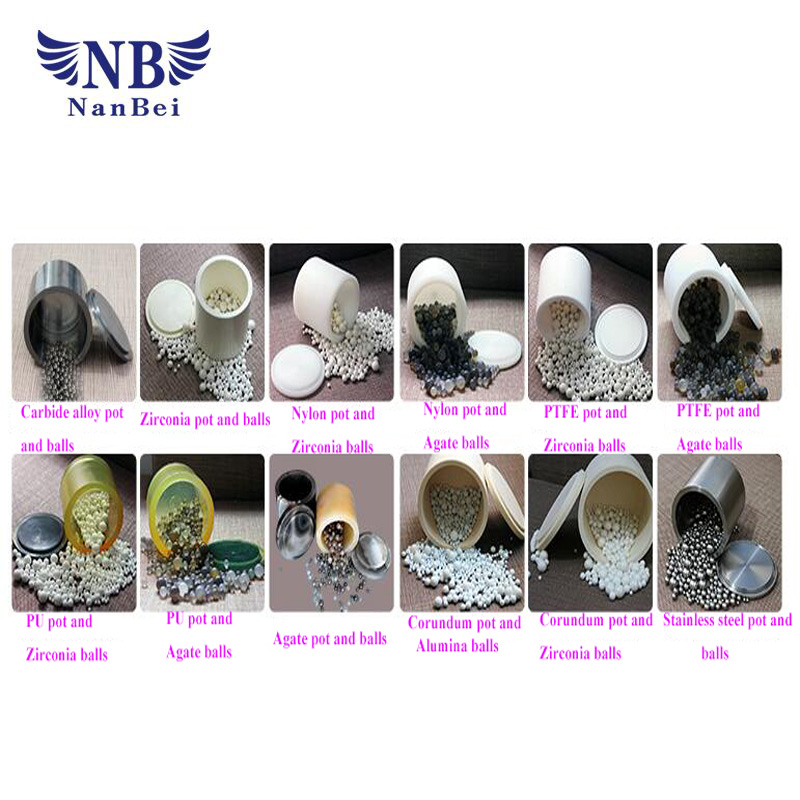

Grinding jars and ball

Besides the planetary ball mill machine, our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Parameters of Laboratory ball mill:

Drive mode			Gear drive and belt drive
Operate Mode			2 or 4 grinding jars work together
Max loading capacity			2/3 capacity of jar
Feeding size			Soil≤10mm;Others≤10mm
Output size			More than 0.1um
Rotation speed ratio			1:2
Speed control			Frequency control
Technical Parameter Table(I) of Vertical Square Planetary Ball Mill (Production Type)
Type NO	Specification	Volume of Each Matched Pot		Quantity	Remarks
NXQM-20	20L	2-5L		4pcs	Matched with vacuum mill pots from 2L to 4L
NXQM-40	40L	5-10L		4pcs	Can be Matched with 5L Vacuum mill Pot
NXQM-60	60L	10-15L		4pcs	Can be Matched with 10L Vacuum mill Pot
NXQM-100	100L	20-25L		4pcs	Can be Matched with 20L Vacuum mill Pot

Technical Parameter Table(II) of Vertical Square Planetary Ball Mill (Production Type)
Model	Power (KW)	Voltage	Revolution Speed (rpm)	Rotation Speed (rpm)	Total Timing (min)	Alternating Run Time of Forward & Reversal Rotation (min)	Noise≤db
NXQM-20	4	380V-50Hz	25-215	50-430	1-9999	1-999	65db
NXQM-40	5.5	380V-50Hz	20-195	40-390	1-9999	1-999	68db
NXQM-60	7.5	380V-50Hz	27-174	40-260	1-9999	1-999	68db
NXQM-100	11	380V-50Hz	27-160	40-240	1-9999	1-999	68db

Technical Parameter Table(III) of Vertical Square Planetary Ball Mill (Production Type)
Model	Power (KW)	Speed Control Mode	Net Weight (kg)	Dimension (mm)
NXQM-20	4	Frequency Control	440	1200760920
NXQM-40	5.5	Frequency Control	675	14008501030
NXQM-60	7.5	Frequency Control	875	16009501120
NXQM-100	11	Frequency Control	1100	175011001180

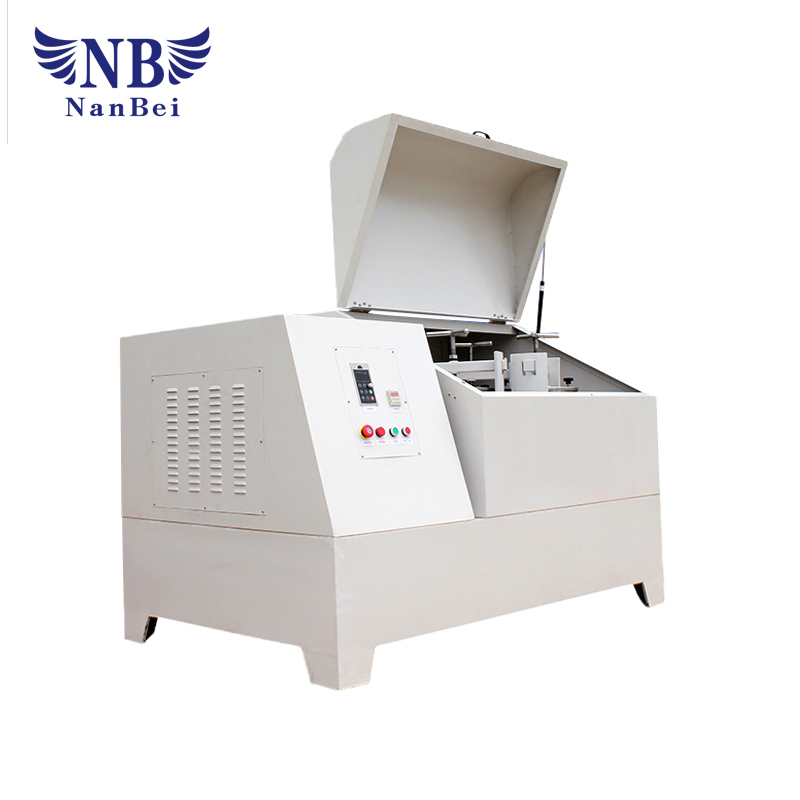

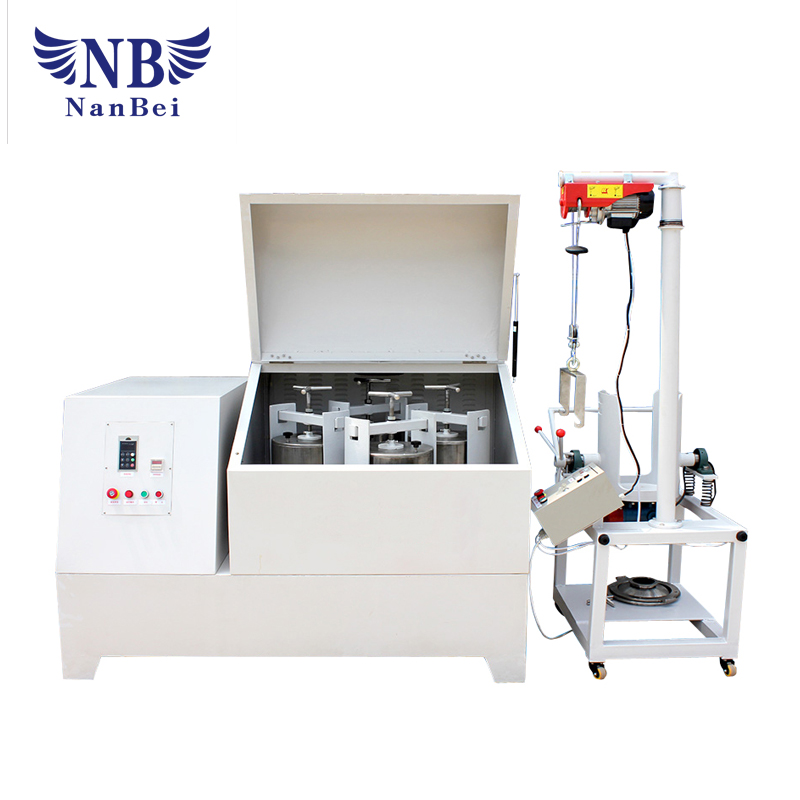

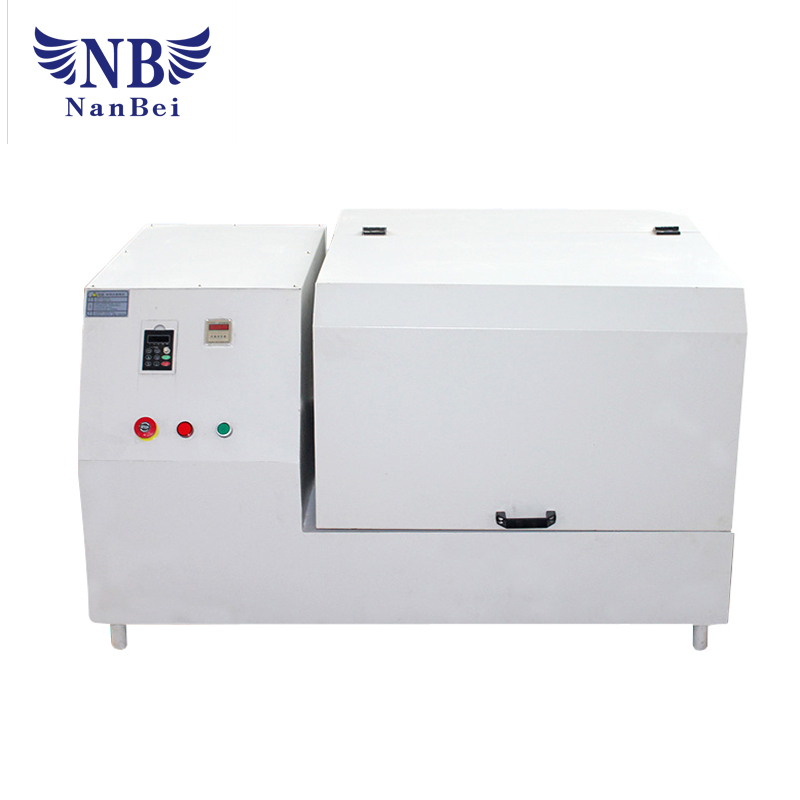

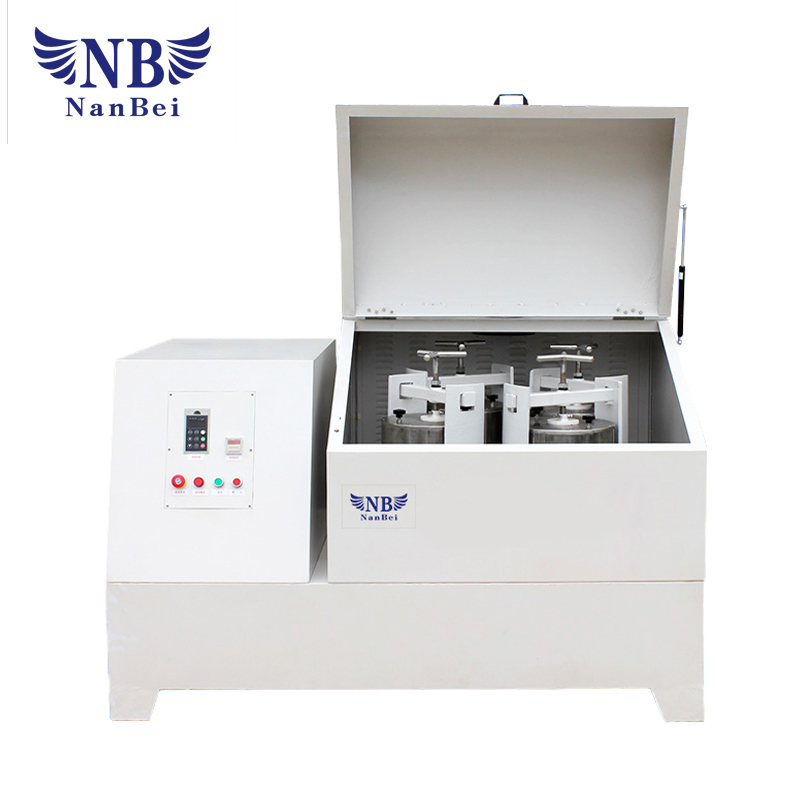

Production Type Vertical Square Planetary Ball Mill Machine
